Daybreak Garden: a Healing Garden Designed for Post-stroke Rehabilitation

Viola Zhao

Spring PerspectiveAutumn PerspectiveIn memory of my dearest grandpa, Rixin Li.

Post-Stroke Depression:

https://www.ncbi.nlm.nih.gov/pmc/articles/PMC8069768/

Effects of stair walking training for post-stroke rehabilitation:

https://www.jstage.jst.go.jp/article/jpts/26/4/26_jpts-2013-430/_article/-char/ja/

Benefits of outdoor rehabilitation:

https://implementationscience.biomedcentral.com/articles/10.1186/1748-5908-5-59

Sense of Refuge in Landscape (semi-enclosed space):

https://www.archpsych.co.uk/post/prospect-refuge-theory

what type of landscape features provide inspirational experiences:

https://www.ncbi.nlm.nih.gov/pmc/articles/PMC7590019/

https://js.sagamorepub.com/index.php/jorel/article/view/10633

what type of landscape features provide a “patient” experience:

Garden Design: Landscaping for a Calming and Relaxing Environment

Planting Design Final Version1

1. after building the model I had a better sense of scale. So this is a more precise proposed tree planting

2. I put it in Photoshop to see how it looks in plan

2. shrubs too, darker green means med height shrubs (30-50cm)

lighter green is groundcover/grass/shorter shrub or hedges (10-30cm)

Then I specified the species for trees. There are 21-23 trees proposed. Mostly chosen from the plant list from the previous post. For shrubs, I am going to look up GROWGREEN and use the Wesbrook planting analysis from my previous post as a reference.

for now im just more concerned about the rain garden area and the 25 % slope area. Like, whether the plantings i proposed are gonna work out.



hi, first of all i went around Wesbrook to record different planting forms. because I think they will inspire me for my own site. Also seeing them in real life is really different from seeing plants in a plan view.

‘

DRAFT MODEL BIRDS EYE VIEW

Proposed trees

This picture shows my first thoughts on proposed tree species and their locations on site. It is not too different from my initial 1:100 plan. However, when I built the model, i realized some of the proposed trees were too small. This is a more accurate draft.

some notes: trees that produce a pleasant smell are proposed to be placed near benches. i tried to keep some pre-existing trees as well.

I also sort of zoned my plantings here. They will have different features based on the different functions of the zones.



Last but not least, pavings.

Next, I will work on my models to make sure they include the accessibility features too (railings, handles). Goodnight for now!



1. Draft Plan based on concept plan

2. Zones

3. Circulation

note: the blue going around in the middle could also be primary circulation4. Grading and Measurements

ramp has a  3-6 percent slope

stairs has a 25 percent slope

5. a more refined curve for draft plan



0. Research & Site Condition

1. Potential Species List

This list is proposed based on observing existing plants in Wesbrook and how they are used in different places. The list is not the final version.

Site Context Plan

Post Stroke Rehabilitation

Brainstorm – Post Stroke Symptoms

Post-stroke depression: https://www.ncbi.nlm.nih.gov/pmc/articles/PMC8069768/

Stroke and post-stroke Symptoms:

https://www.stroke.org/en/about-stroke/stroke-symptoms



Brainstorm – Functions

Brainstorm – Analysis

Brainstorm – Forms

Concept Plan at 1:100 Version 1

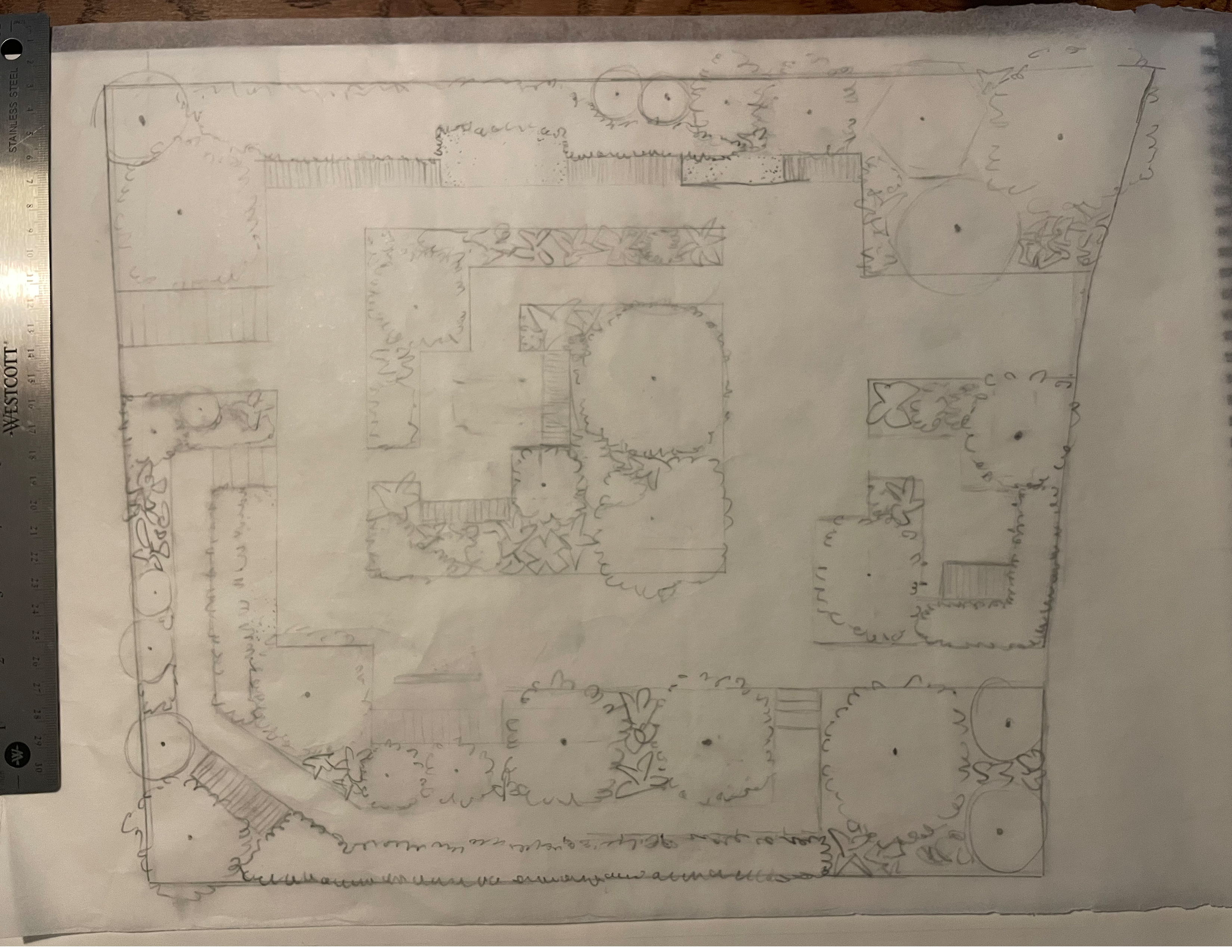

Example Plan 1

Overlay 1



Section 1 at 1:100

Concept Plan at 1: 100 Version 2

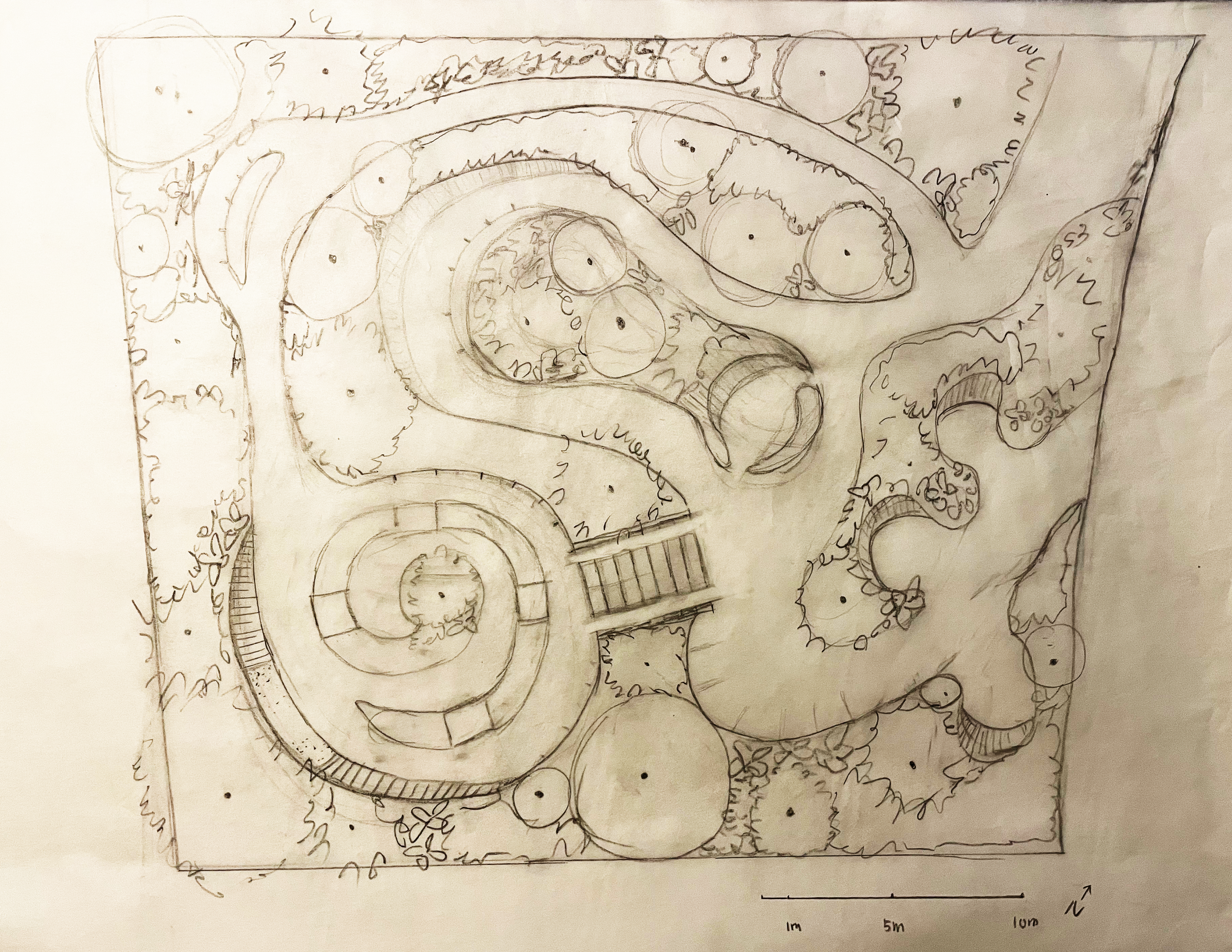

Example Plan 2

Overlay 2

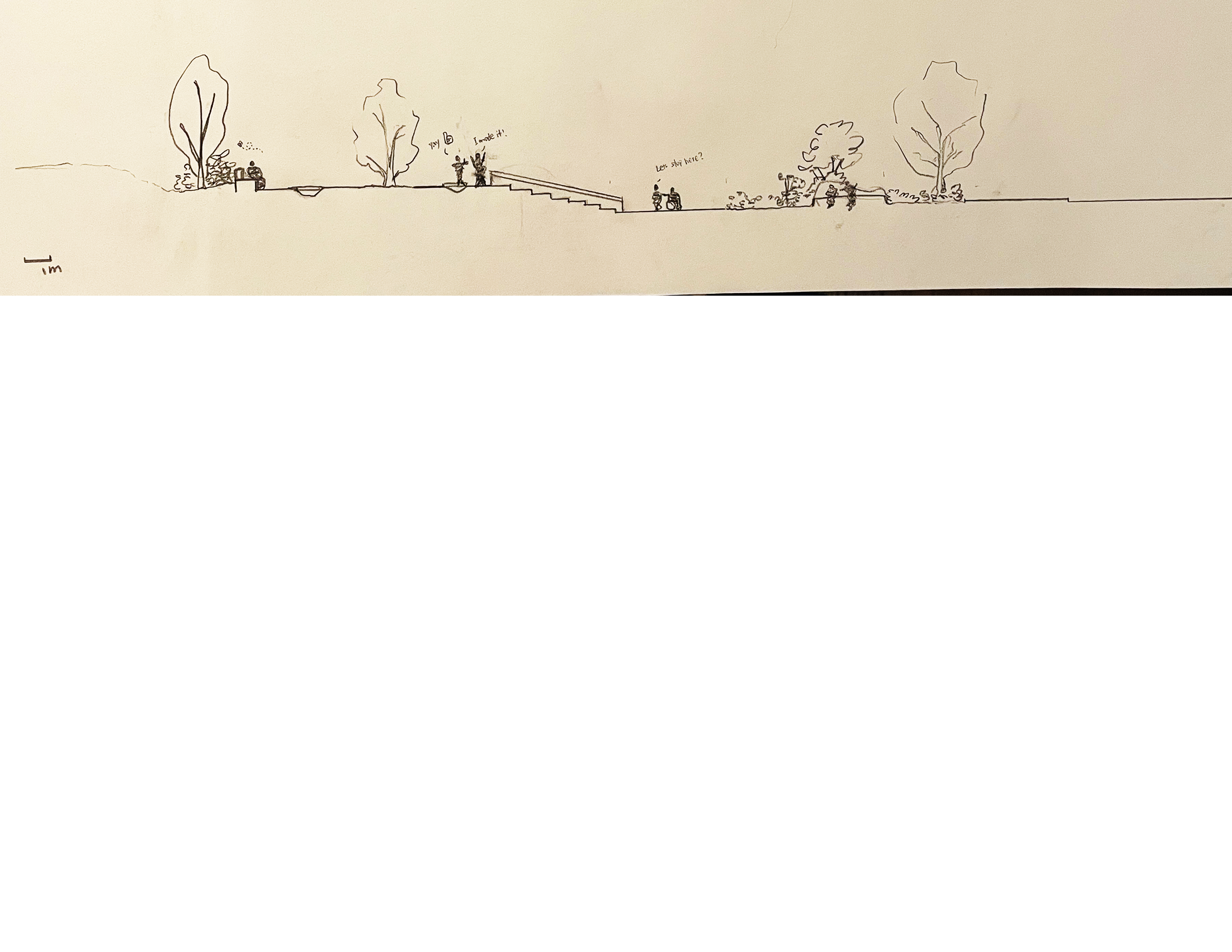

Section 2 at 1: 100

Perspectives

Site Selection
Site Plan at 1:250



Site Visit Notes:

Wesbrook context:

“-its goals to establish a vibrant, compact, and complete walkable community which limits impacts on local streams and adjacent forest.”

Site Visit Notes
